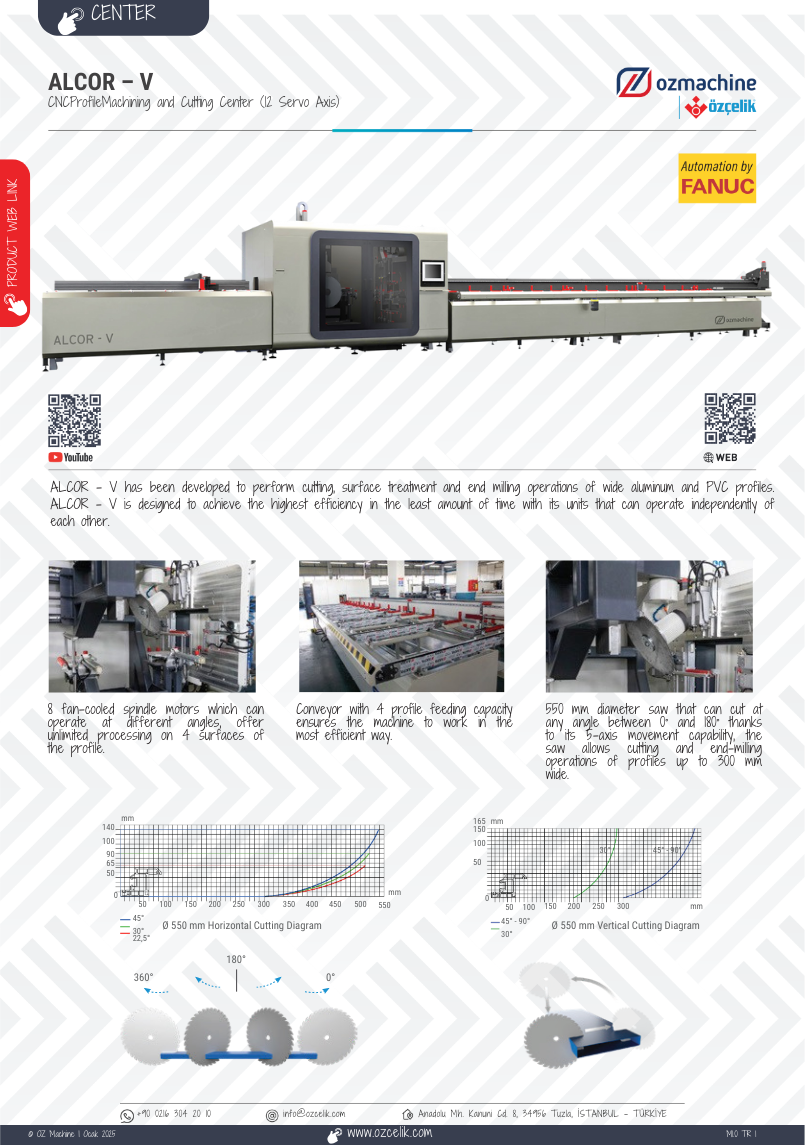

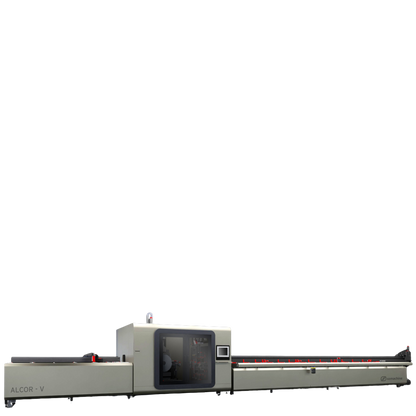

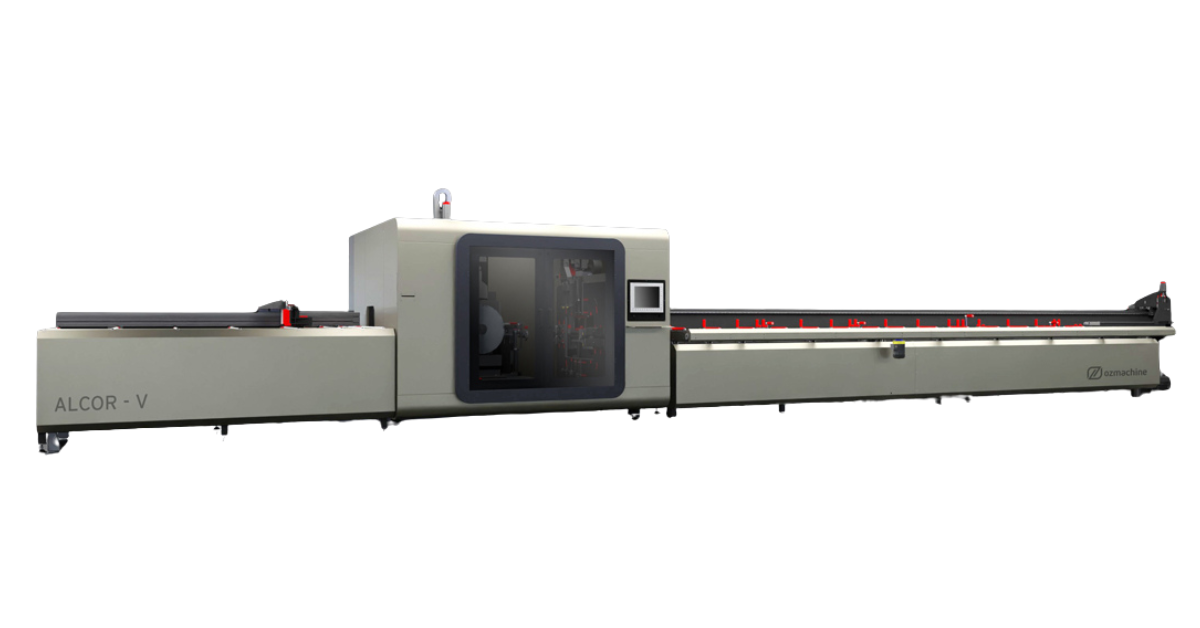

ALCOR – Vhas been developed to perform cutting, surface treatment and end milling operations of wide aluminium and uPVC profiles. ALCOR – V is designed to achieve the highest efficiency in the least amount of time with its units that can operate independently of each other.
Servo controlled cutting
Servo controlled rotation axis
Automatic positioning at all degrees between 30° and 150° with servo motion system
Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles
Industrial PC with Windows based touchscreen and easy to use practical interface
Remote access
Data transfer over remote network connection, Ethernet and USB
Guard cabin for cutting and machining area
Programmable cutting and processing speed
Discharge unit with pneumatic conveying system
Resume feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces
Feeding capacity for 10 profiles
High cutting capacity to increase efficiency
High speed axis movements
Ability to process 4 different surfaces of a profile
Ability to use cutting and processing units independently
