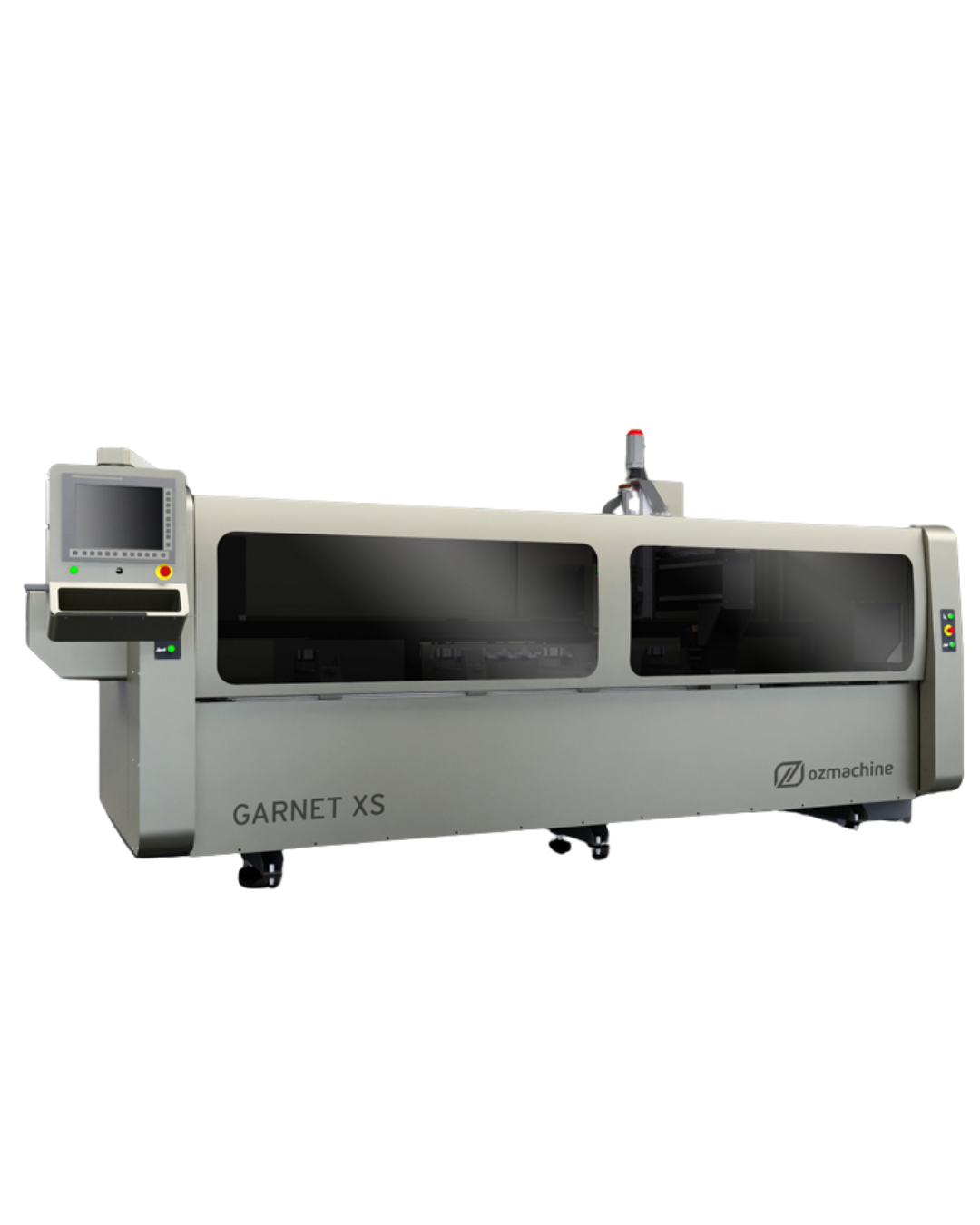

GARNET XS CNC Controlled Profile Machining Center (3 + 1 Axis)
Used for performing milling, drain channel opening, drilling, marking and milling processes on aluminium and uPVC profiles.
- Non-standard specific operations on different profiles
-
CNC based control system Ability to process at fixed angles of -90, 0 and +90 degrees
- Automatic tool replacement
- Automatic magazine for 10 tools
- Automatic clamping positioning
- Touchscreen
- Remote access
- Data transfer over remote network connection, Ethernet and USB
- High processing capacity to increase efficiency
- Ability to process profiles over 10ft with double gauge system
- Automatic lubrication in processing area
Standard Equipment
- Processing tools (5 pieces)
- Ability to process 2 profiles in parallel (except inner surfaces)
- Cabinet providing protection in the processing zone
Optional Equipment
- Barcode reader
- Automatic lubrication
- Optional length on X-axis
- Ability to perform processing in two separate zones (20ft)
