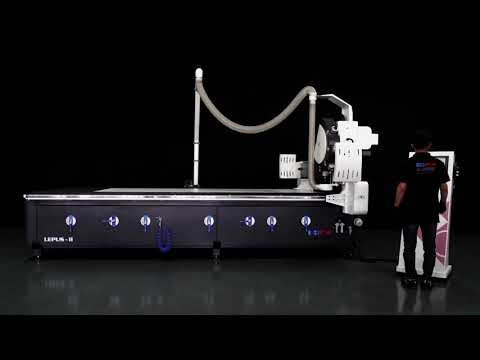

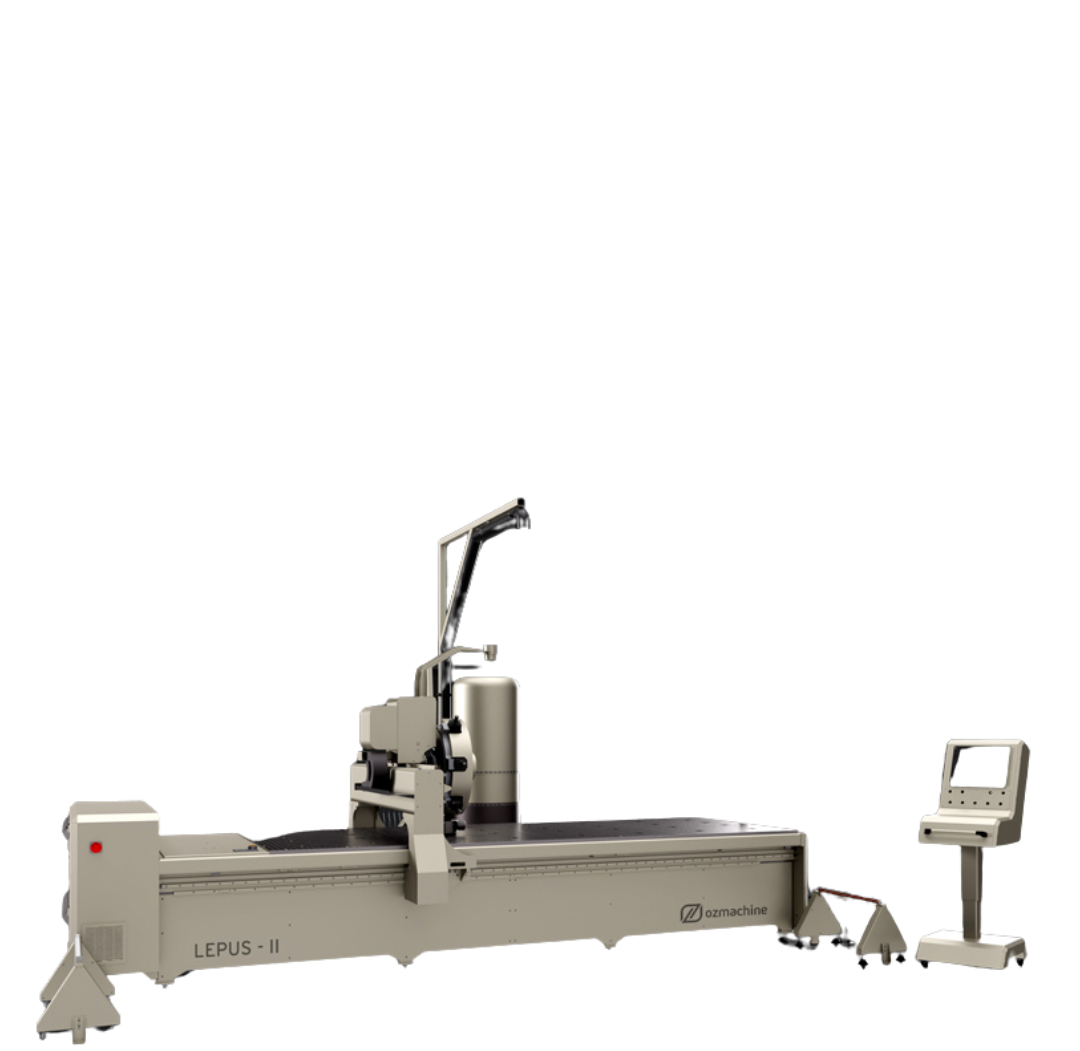

LEPUS-II AND IL Advanced 4-Axis CNC Panel Processing Machine
The LEPUS-II (3M) and IL (4M) is a high-precision 4-axis CNC controlled panel processing machine engineered for cutting, V-channel opening, and similar operations on a wide range of composite panels and plates. With its unique automatic tool replacement system, the LEPUS-II reduces tool change time to just 2.5 seconds, minimizing downtime and maximizing productivity.
Beyond composites, the machine also supports wood, plastic, and other materials through simple milling cutter changes offering true multi-material versatility.
Key features include:
-
Dust extraction system for clean, efficient operation
-
Five independent vacuum zones controlled externally for secure material holding
-
Automatic tool length measurement for precision accuracy
-
X and Y axis reference stops (5 pcs) for consistent positioning
-
Handwheel control for manual movement and fine adjustments
-
Laser safety barrier and metal side barriers for operator protection
-
Spare cutting tools and tool holder pens included
-
Lubricated vacuum pump for reliable suction performance
-
2D and 3D geometry processing supported via Alpha cam CAD/CAM software
The LEPUS-II combines speed, safety, and versatility making it an essential tool for modern fabrication workshops seeking superior precision and efficiency.
