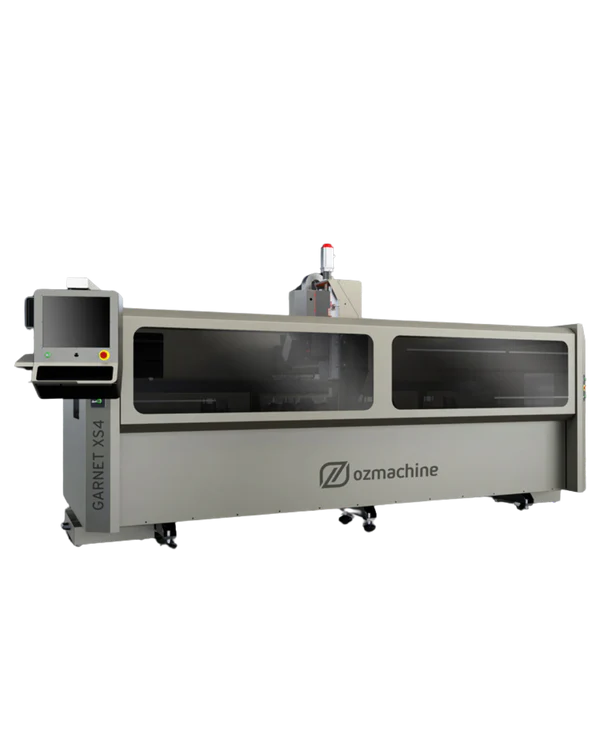

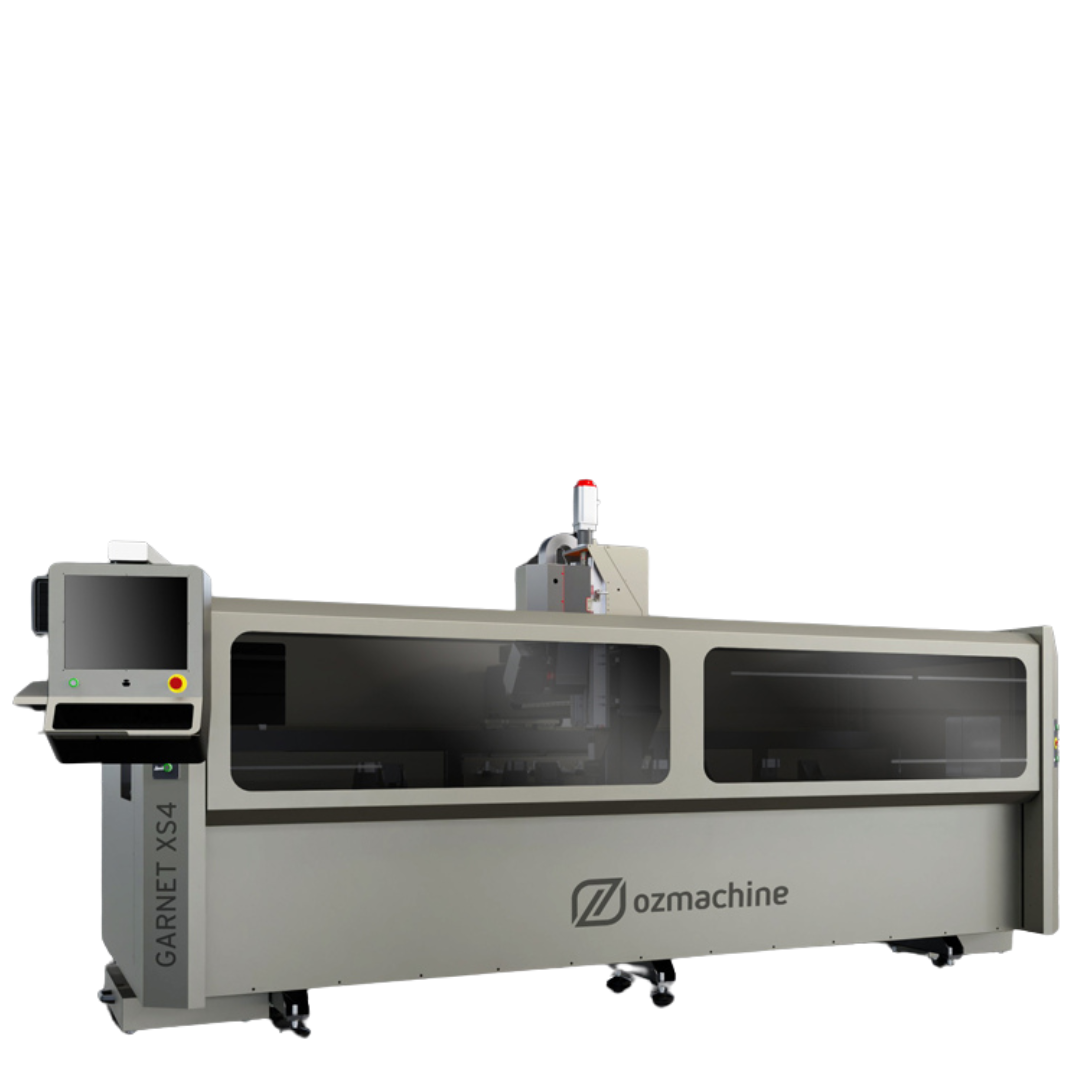

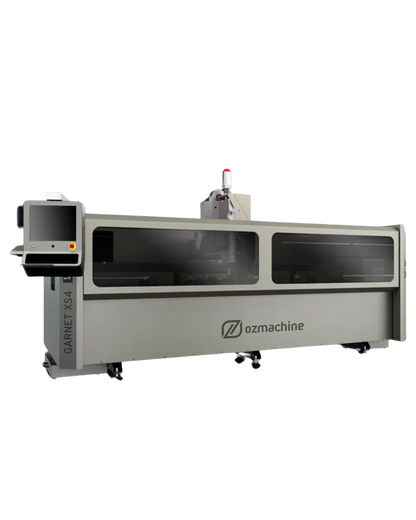

GARNET XS4 CNC Controlled Profile Machining Center (4 Axis)

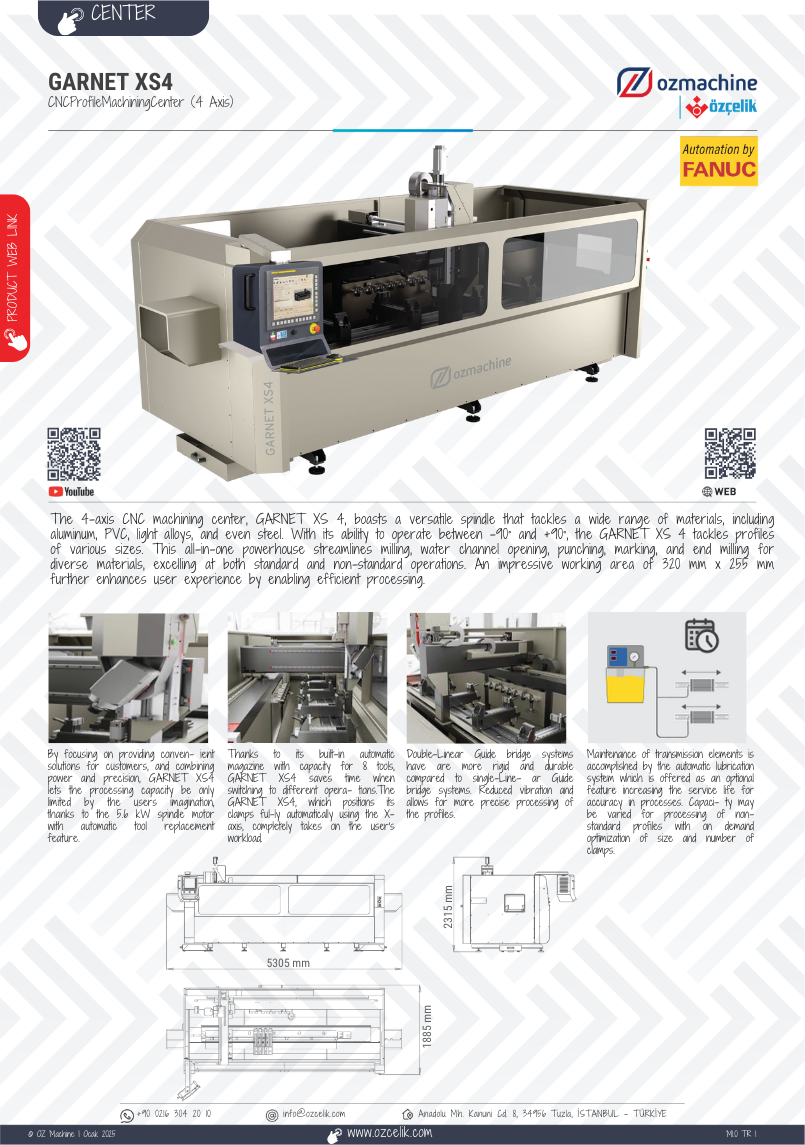

The 4-axis CNC machining center, GARNET XS 4, boasts a versatile spindle that tackles a wide range of materials,
including aluminum, PVC, light alloys, and even steel. With its ability to operate between -90° and +90°, the GARNET XS 4 tackles profiles of various sizes.
• Excellent Productivity- Ability to process more profiles thanks to high-speed axis that surpass standard industry speed. X – 90 m / min, Y- 60 m/min, Z – 20 m / min, A – 166° / sec.
• Accurate Processing – With FANUC, the world leader in automation, faultless results are achieved in all processes. World Wide Fanuc Warranty.
• Wide Operating Range- It is at the top of the industry thanks to its ability process up to 3000 mm. Also, with the 2 standard profiles gauge its ability to process up to 6000 mm.

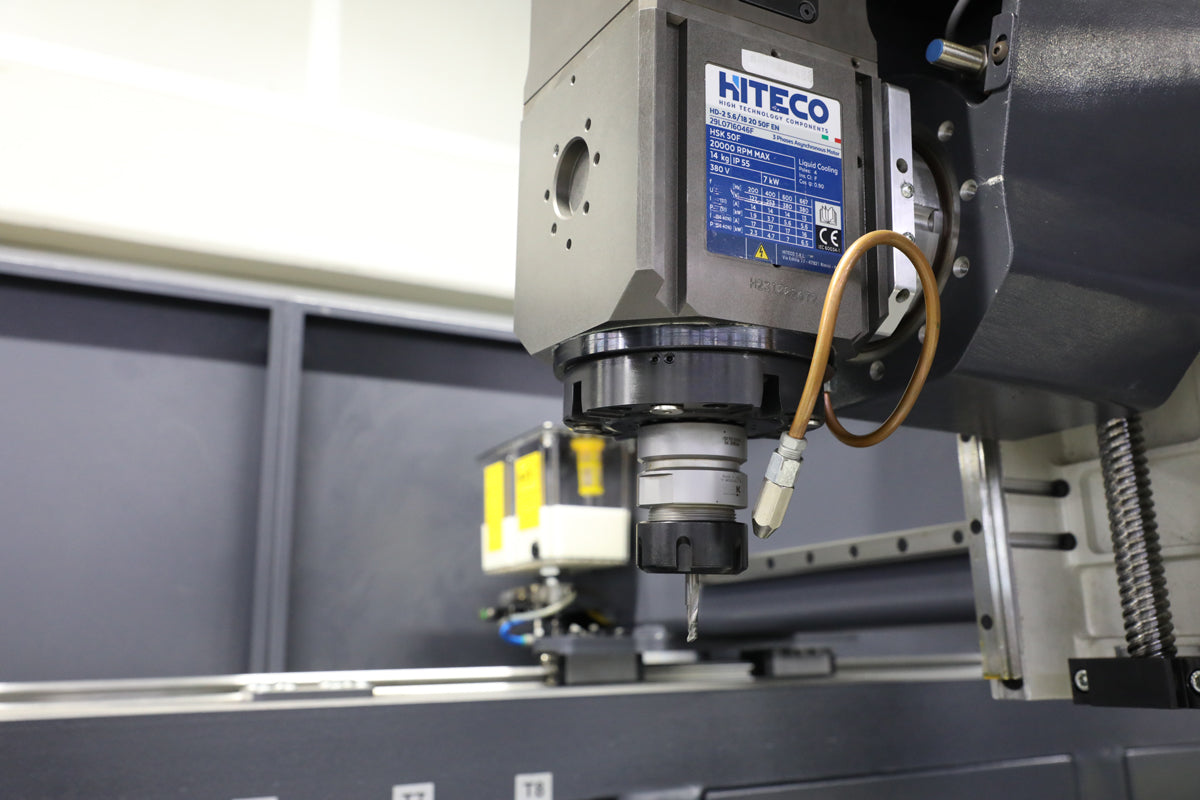

• Wide Range Of Materials- Ability to process all profiles even steel thanks to its 5,6 kW HITECO powerful spindle motor, one of the leading brands in the industry.

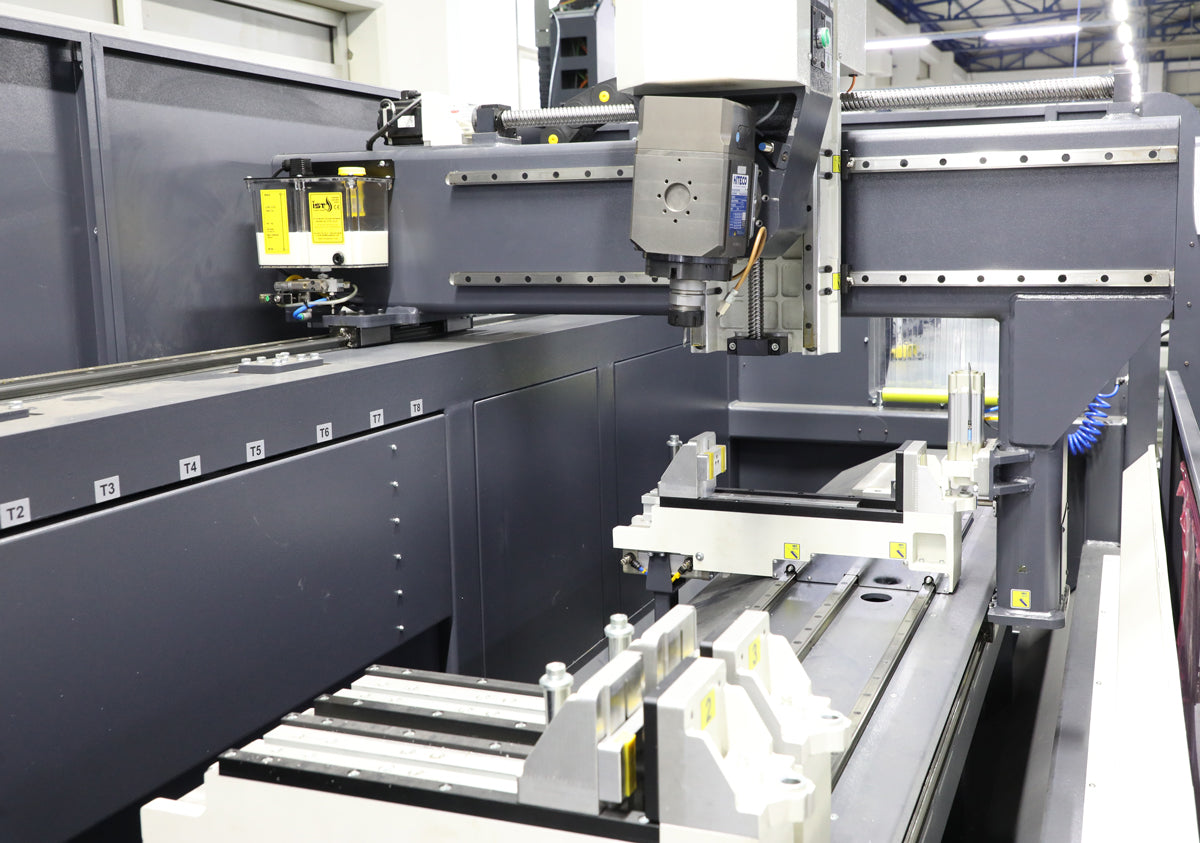

• Flawless Result- Double-Linear Guide bridge systems have are more rigid and durable compared to single-Linear Guide bridge systems. Reduced vibration allows for more precise processing of the profiles.

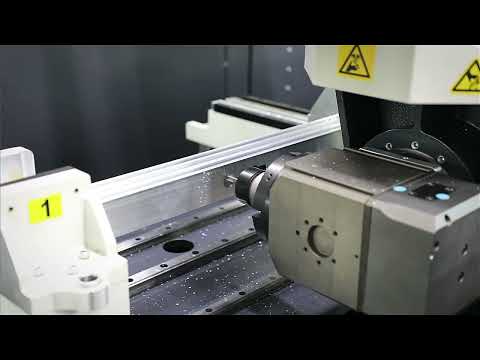

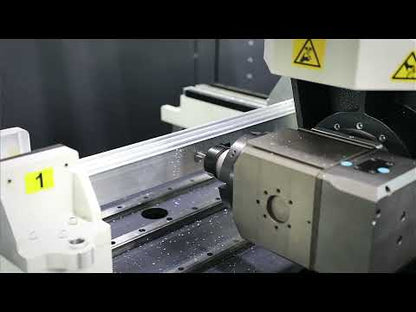

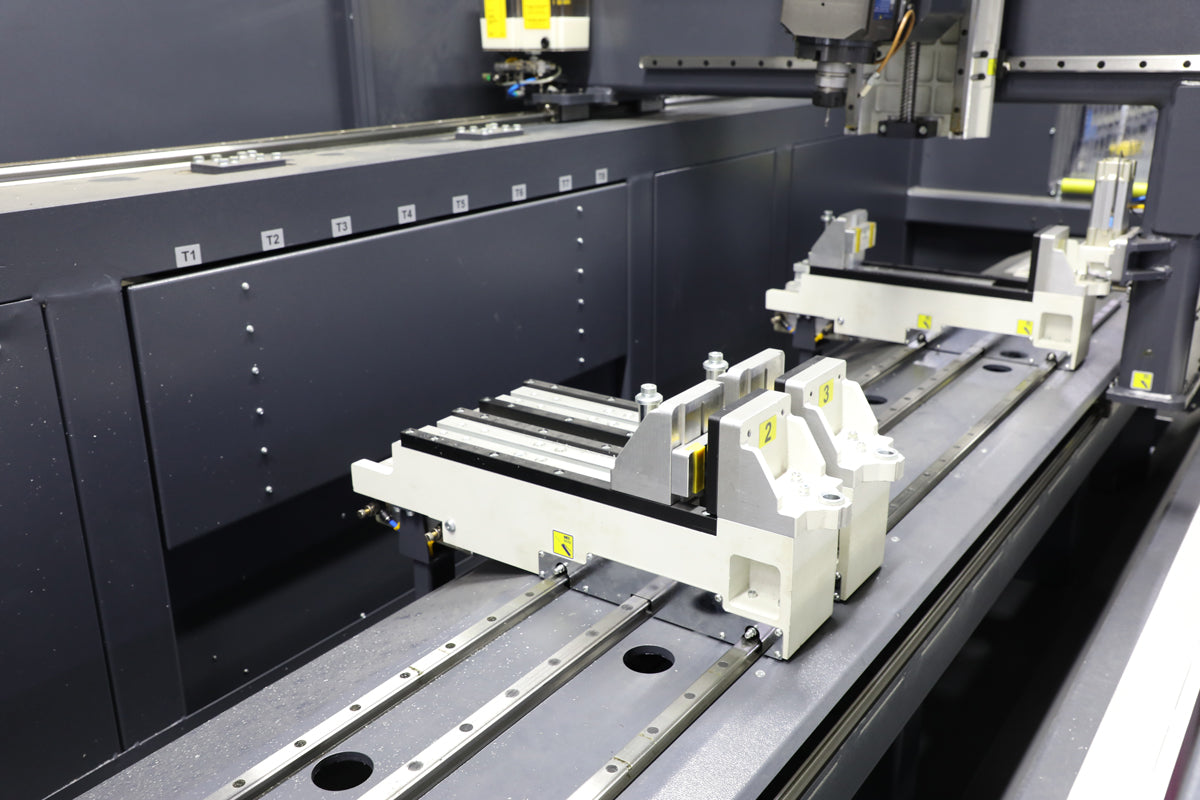

• Accurate and fast adjustment- Precise positioning with error-free results every time thanks to automatic clamp positioning on the X-axis.
• Flexibility- with the 8-tool magazine capability, it allows all process on profiles.
• Maximum Safety- Thanks to its sliding open-and-close front cover, it fully protects the operator from any potential workplace accidents.
