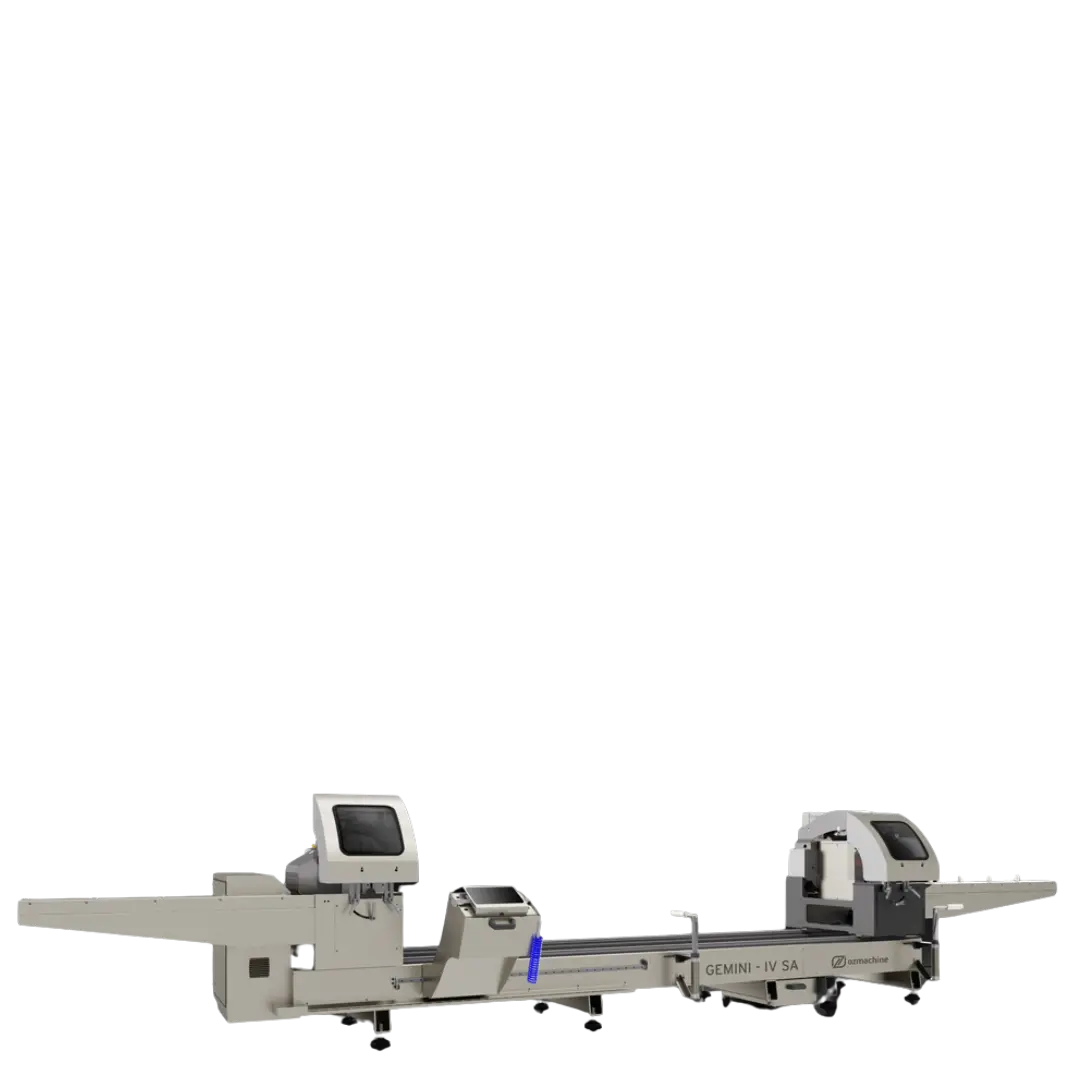

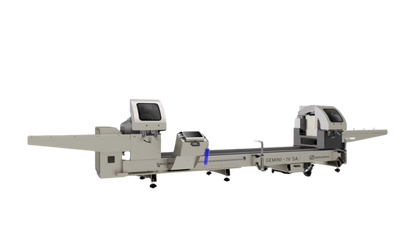

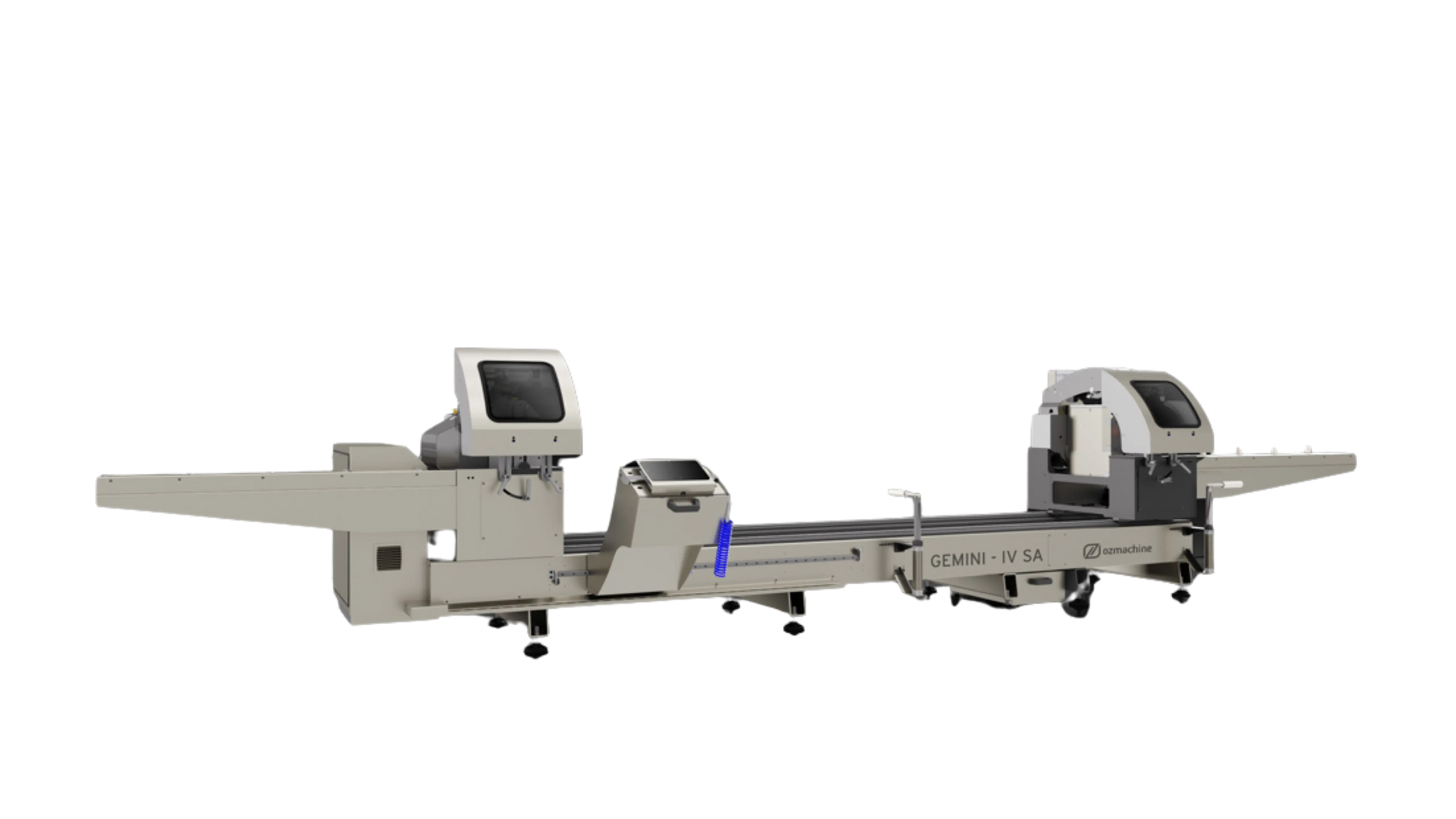

GEMINI IV SA 450mm Double Mitre Saw
GEMINI IV SA 450mm Double Mitre Saw is a reliable double head front blade saw equipped with Ø 450 mm saw blades and semi-automatic 1-axis servo control, designed for precise cutting of aluminium and uPVC profiles across a wide range of angles and thicknesses. Its compact yet capable design makes it an ideal solution for shops seeking flexibility, accuracy, and efficiency.
The machine features hydro-pneumatic rapid angle positioning at preset angles of 45° and 90°, while allowing manual positioning for intermediate angles, ensuring precise cutting for both standard and custom applications. With its double-head configuration, the GEMINI–IV SA enables simultaneous cutting of profiles from 400 mm up to 4,040 mm, removing limitations on profile length while increasing throughput.
Cutting quality and operator safety are enhanced through automatic horizontal and vertical pneumatic clamps, profile support units, and enclosed cutting zone protection covers, providing stable material positioning and consistent results. Additional features such as hydro-pneumatic cutting feed adjustment, spray saw blade cooling, and adjustable saw blade travel speed contribute to clean, smooth cutting performance.
An intuitive 10″ touchscreen control panel, digital angle display, and optional barcode printing and data transfer via Ethernet and USB simplify operation and job setup. Optional Softcut cutting optimization software, chip drawer, powder suction compatibility, and expandable X-axis length further improve efficiency. Combining precision, safety, and ease of use, the GEMINI–IV SA delivers dependable performance for everyday profile cutting applications.
