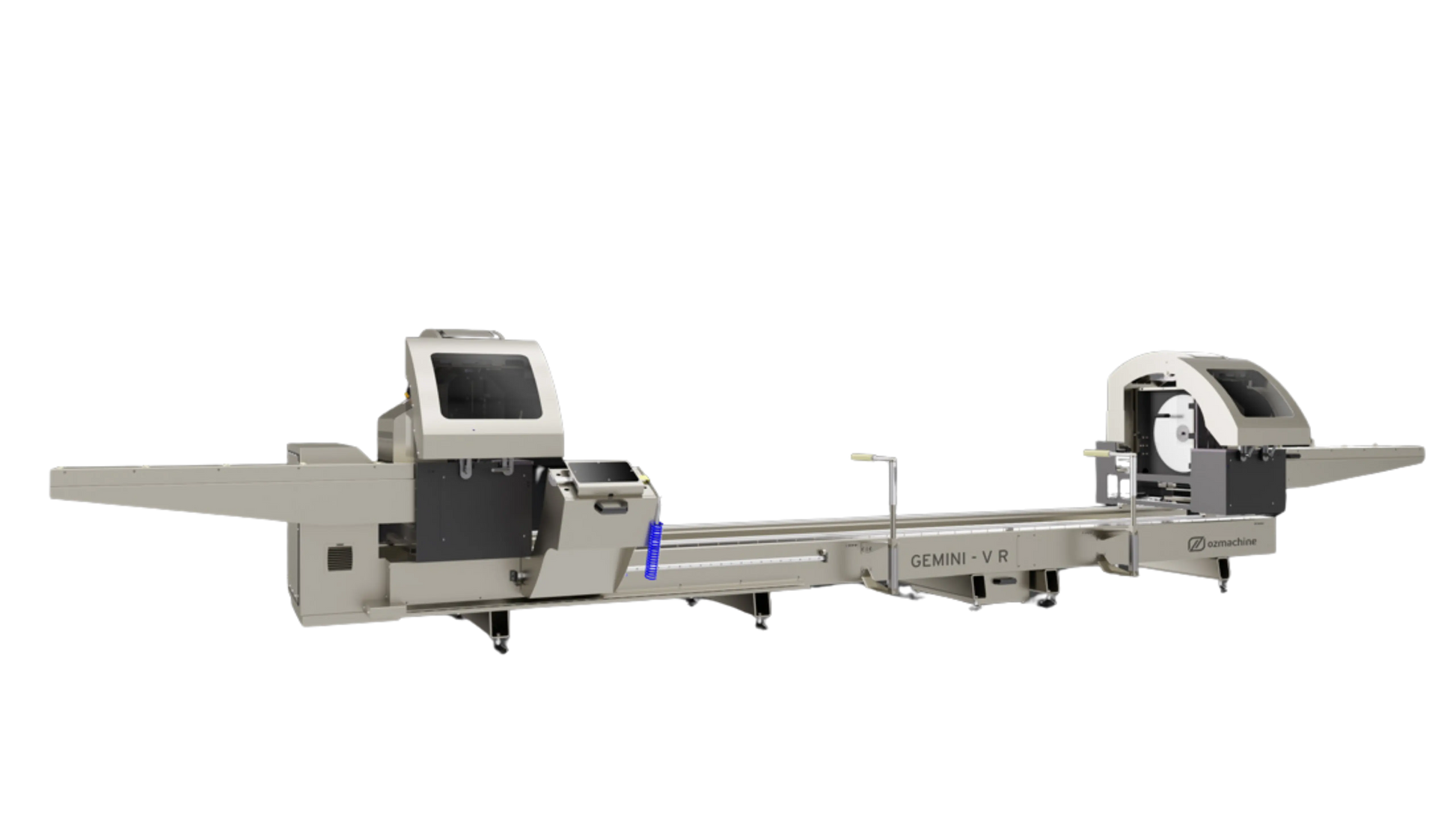

GEMINI V R 550mm Double Mitre Saw

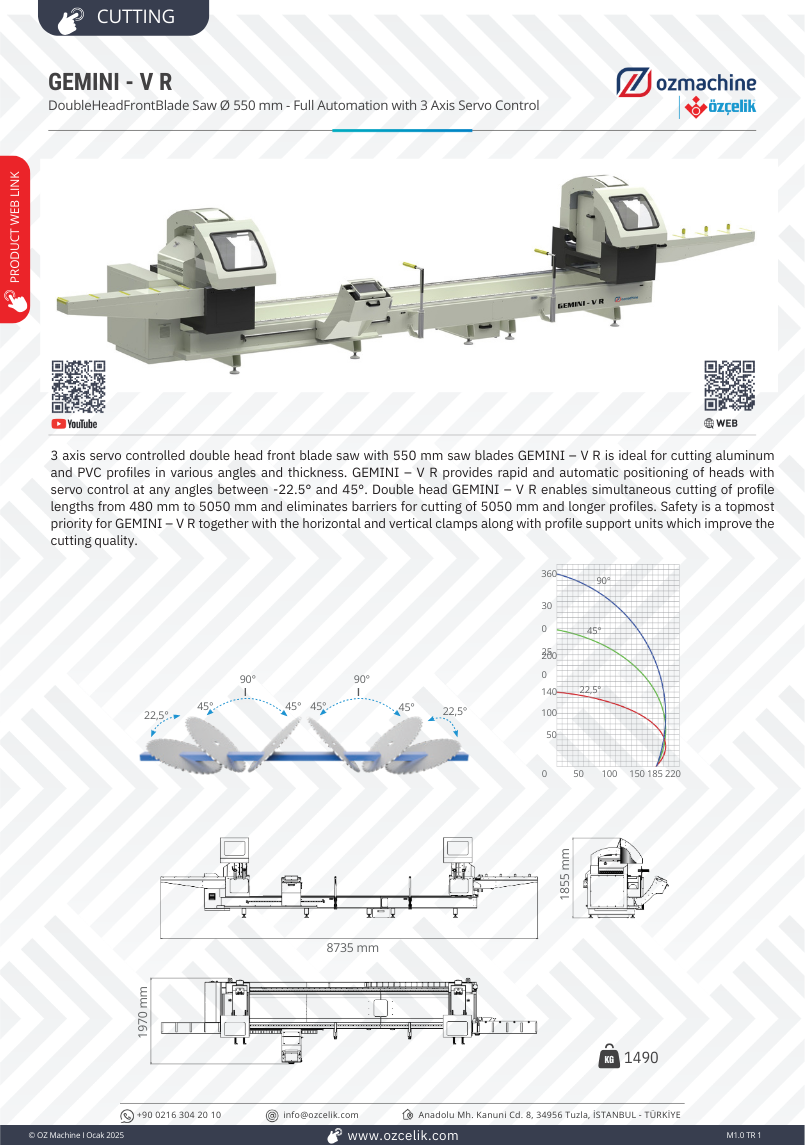

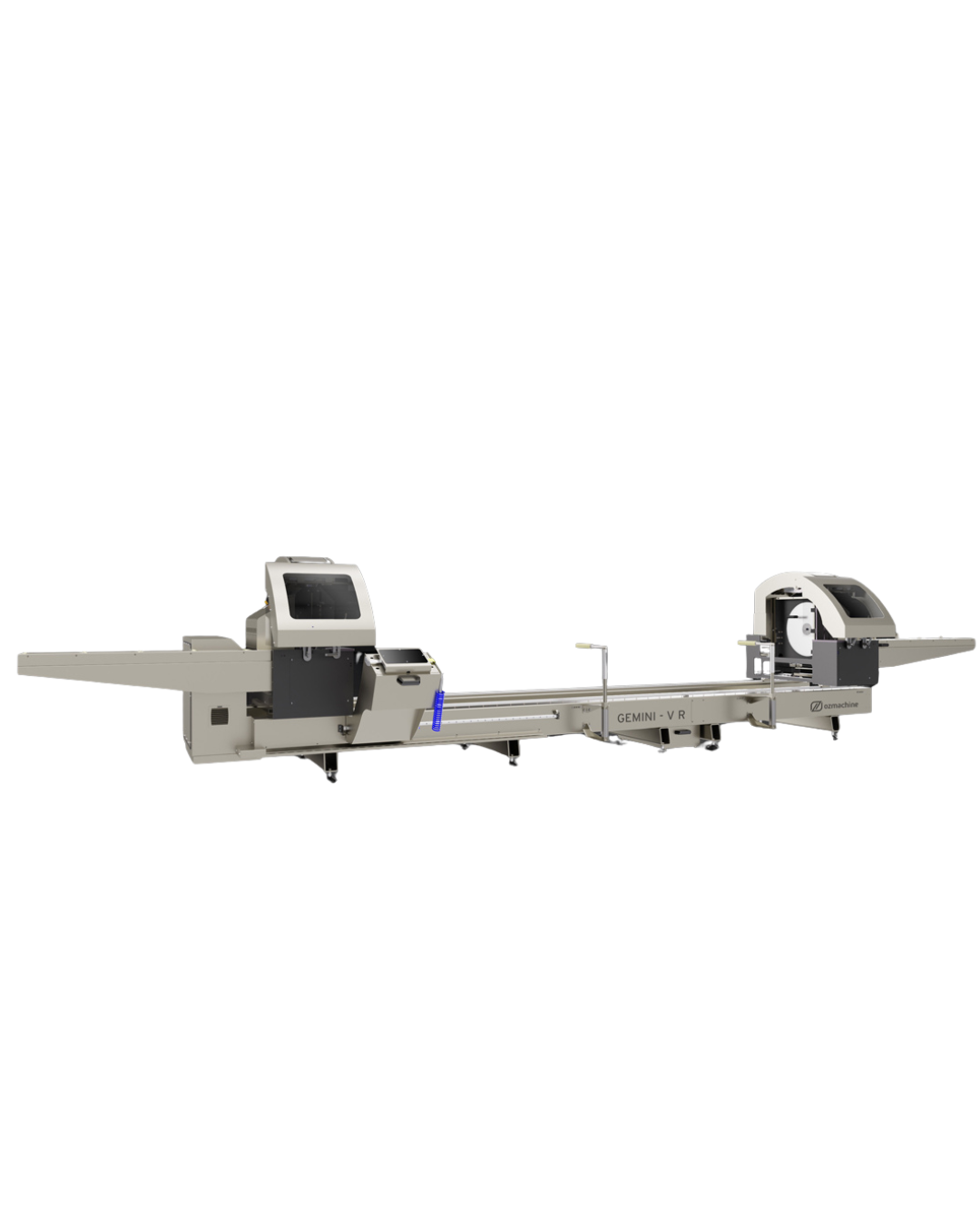

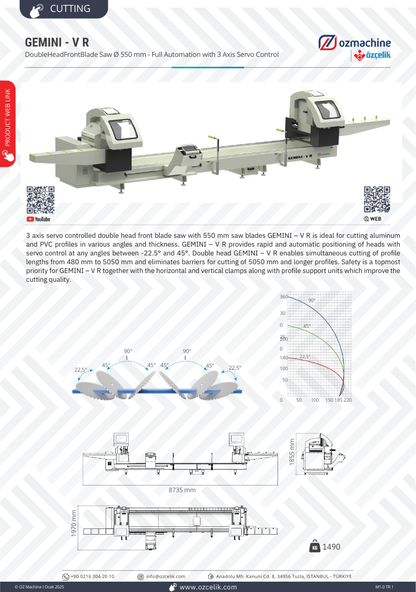

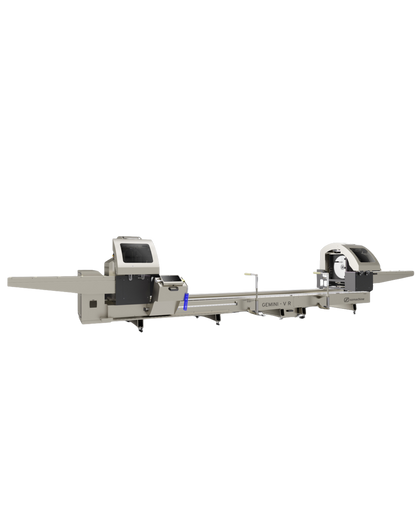

GEMINI V R 550mm Double Mitre Saw is a high-performance double head front blade saw equipped with Ø 550 mm saw blades and full 3-axis servo control, designed for fast, accurate cutting of aluminium and uPVC profiles across a wide range of angles and thicknesses. Built for demanding production environments, it delivers exceptional precision, speed, and automation.

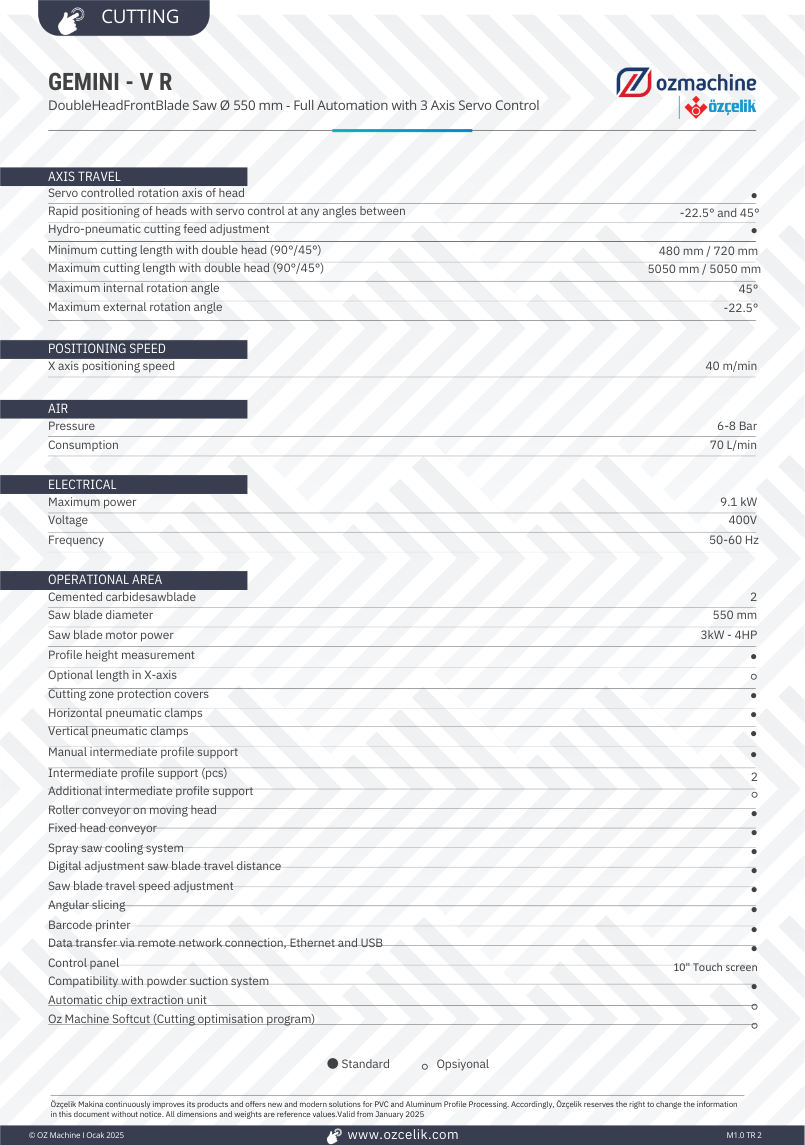

Featuring servo-controlled rapid positioning, the GEMINI–V R automatically adjusts both cutting heads to any angle between –22.5° and +45°, ensuring fast setup times and repeatable cutting accuracy. Its double-head configuration enables simultaneous cutting of profiles from 480 mm up to 5,050 mm, while eliminating restrictions on longer profile processing making it ideal for high-volume and large-format applications.
Cut quality and operational safety are enhanced through horizontal and vertical pneumatic clamps, profile support units, and fully enclosed cutting zone protection covers, providing stable material positioning and consistent cutting results. Advanced features such as hydro-pneumatic cutting feed adjustment, spray saw blade cooling, and digital control of saw blade travel distance and speed further improve cutting performance and surface finish.
The 10″ touchscreen control panel, barcode printing capability, and data transfer via Ethernet and USB ensure intuitive operation and seamless integration into automated workflows. Optional features including Softcut cutting optimization software, automatic chip extraction, powder suction compatibility, and expandable X-axis length enhance efficiency even further. Combining automation, precision, and reliability, the GEMINI–V R sets a high standard for modern double-head profile cutting solutions.
